ZW Series Non-clogging Self-priming Sewage Pump

ZW Series Non-clogging Self-priming Sewage Pump

FOB Price:                                       US $135-1085 / Piece
Model NO:                                       40ZW 8-15 ~ 300ZW 800-14
Influent Type of Impeller:                Single Suction Pump
Position of Pump Shaft:                   Horizontal Pump
Pump Casing Combined:                 Horizontal Split Pumps
Mounting Height:                            Suction Centrifugal
Impeller:                                          Open
Usage:                                              Pump, Pumps
Max Flow:                                       300m3/h
Gasoline Generator Power Range:  1.kw-55kw
Insulation:                                        F Class
Mechanical:                                     Carbon/Ceramic/Stainless Steel
Bearing:                                            Normal or C&U
Voltage:                                             380V
Duty:                                                 Continuously Rated S1
Mechanical Seal:                               Ceramic Steatite/Metalized Carbon
Motor Housing:                                 Aluminum/Cast iron
Protection:                                          IP44/IP54
Pump Head:                                        Cast Iron
Transport Package:                             Carton Box
Specification:                                      ISO. CE, CCC
Trademark:                                          TZMOTAI
Origin:                                                 Taizhou
HS Code:                                             8413709190
Production Capacity:                           500PCS/Day

Product Detail

Our service:

Product Tags

ZW Blockage-Free Self-Priming Sewage Pump



This pump have the function of self-priming and sewage discharge. Like the normal clean water self-priming pump, without foot valve or water diversion, it is able to directly pump waste water with large particles and long fibers, impurity of goaf, feces and all the industrial waste water.And it is easy to handle, move, and install.



Work  Conditions

1.Ambient temperature ≤ 45 medium temperature ≤ 60
2.The pH of medium: 6-9
3.Max grain diameter: 60% of the caliber of pump, Max fiber length: 5 times of the caliber.
4.Max percentage of the impurities: 15%; Max Medium gravity: 1240kg/m³



Product Parameters

ZW Blockage-Free Self-Priming Sewage Pump  This pump have the function of self-priming and sewage discharge. Like the normal clean water self-priming pump, without foot valve or water diversion, it is able to directly pump waste water with large particles and long fibers, impurity of goaf, feces and all the industrial waste water.And it is easy to handle, move, and install.   Work  Conditions 1.Ambient temperature ≤ 45 medium temperature ≤ 60 2.The pH of medium: 6-9 3.Max grain diameter: 60% of the caliber of pump, Max fiber length: 5 times of the caliber. 4.Max percentage of the impurities: 15%; Max Medium gravity: 1240kg/m³   Product Parameters     Product Parameter    Model  Flow 	Lift	Efficiency	Speed	Power	 Net positive suction head  Imbibition height m3/h	m	%	r/min	kw	m 40ZW 8-15	8	15	55	2900	1.5	2.5	5.5 50ZW 10-20	10	20	58	2900	2.5	2.5	5.5 50ZW 15-30	15	30	60	2900	3	2.5	5.5 65ZW 20-25	20	25	60	2900	4	2.5	5.5 65ZW 30-18	30	18	60	1450	4	2.5	5.5 65ZW 20-30	40	30	60	2900	5.5	3	5.5 80ZW 40-16	40	16	62	1450	4	3	5.5 80ZW 65-25	65	25	62	2900	7.5	3	5.5 100ZW 100-15	100	15	65	1450	7.5	3	5.5 65ZW 40-50	40	50	65	2900	11	3	5.5 100ZW 100-30	100	30	65	2900	22	3	5.5 100ZW 100-45	100	45	65	2900	30	3	5.5 80ZW 65-55	65	55	66	2900	15	3	5.5 125ZW 120-20	120	20	55	1450	15	4.5	5.5 150ZW 180-14	180	14	60	1450	15	5	5.5 150ZW 180-20	180	20	60	1450	18.5	5	5 150ZW 180-25	180	25	61	1450	22	5	5 150ZW 180-30	180	30	65	1450	30	5	5 150ZW 180-35	180	35	45	1450	37	5	6 150ZW 180-38	180	38	55	1450	45	5	5.5 200ZW 280-14	280	14	65	1450	22	5	5 200ZW 280-20	280	20	60	1450	37	5	5 200ZW 280-28	280	28	55	1450	55	4	5.2 250ZW 420-20	420	20	61	1450	55	6	4.5 300ZW 800-14	800	14	65	1450	55	5	4.5  Product details   Product Parameters And Parts Analysis       Product usage scenario    Packaging & Shipping  Packing & Shipping :  To avoid damp, inner layer wrapped with plastic paper To lessen vibration, middle layer filled with foam To avoild squeeze, motor are packed with plywood or wooden case Customized package is also accept   PAINTING COLOR CODE   Our Advantages     ADVANTAGE: Pre-sales service:  •We are a sales team, with all technical support from engineer team. •We value every inquiry sent to us, ensure quick competitive offer within 24 hours. •We cooperate with customer to design and develop the new products. Provide all necessary document.  After-sales service: •We respect your feed back after receive the products . •We provide 1years warranty after receipt of products . •We promise all spare parts available in lifetime use. •We loge your complain within 24 hours.  FAQ Q: How about the quality ? A: We use high quality raw material for production , and 100% QC in producing process before the goods being packed up , we sincerely expect to work with you for long and stable time .  Q:  What's your payment term ? A: 30% deposit before producing , 70% TT against BL copy .   Q: What's your warranty ? A: One year warranty , detail as your requirement .   Q: Could lput my oun logo on it ? A: Sure , we can make your logo after your give us your authorization .  Q: Can I geta sample to chedk your quality and how long I can get samples ? A: Yes , very welcome and sample will be finished with in 7-14 days .   Q: How about the delivery time ? A: 30-60 days after receipt of deposit .

Product Parameter

https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/

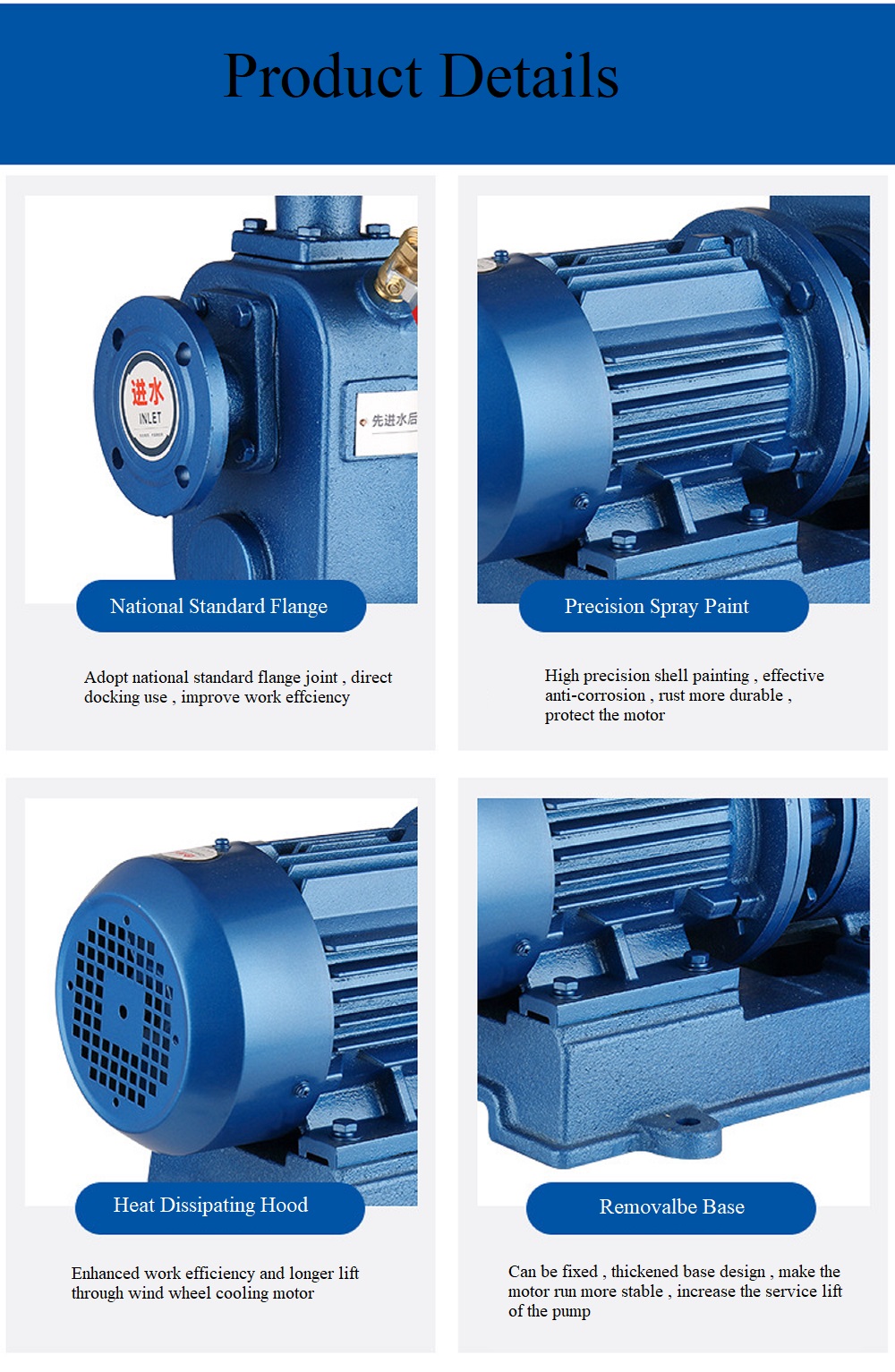

Product details
https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/

https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/

https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/

https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/





Product usage scenario

https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/

Packaging & Shipping

Packing & Shipping :

To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept



PAINTING COLOR CODE
https://www.motaimachine.com/portable-variable-frequency-permanent-magnet-pump-product/
Our Advantages

3QJD-DC72V-1-5hp-submersible-solar-water-pump-electric-water-pump-5

ADVANTAGE:

Pre-sales service:

•We are a sales team, with all technical support from engineer team.

•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.

•We cooperate with customer to design and develop the new products. Provide all necessary document.

After-sales service:

•We respect your feed back after receive the products .

•We provide 1years warranty after receipt of products .

•We promise all spare parts available in lifetime use.

•We loge your complain within 24 hours.

FAQ

Q: How about the quality ?
A: We use high quality raw material for production , and 100% QC in producing process before the goods being packed up , we sincerely expect to work with you for long and stable time .

Q:  What’s your payment term ?
A: 30% deposit before producing , 70% TT against BL copy .

Q: What’s your warranty ?
A: One year warranty , detail as your requirement .

Q: Could lput my oun logo on it ?
A: Sure , we can make your logo after your give us your authorization .

Q: Can I geta sample to chedk your quality and how long I can get samples ?
A: Yes , very welcome and sample will be finished with in 7-14 days .

Q: How about the delivery time ?
A: 30-60 days after receipt of deposit .
