YVF2 Series Converter-Fed Variable Frequency Three-Phase Motor

YVF2 Series Converter-Fed Variable Frequency Three-Phase Motor Featured Image

YVF2 Series Converter-Fed Variable Frequency Three-Phase Motor

Frame	80 ~ 315
Power	0.55 ~ 315KW
Reference frequency	S50Hz
Insulation class	F
Frequency range	(3) 5 · 100Hz
reference pole number	4P

Send email to us

Product Detail

Product Tags

Performance data

Type	power	Rated current	Rated torque	Constant torque frequency range	Constant power frequency range
Synchronous speed 3000r/min
YVF2-80M1-4	0.55	1.6	3.8	5~50	50~100
YVF2-80M2-4	0.75	2.0	5.2
YVF2-90S-4	1.1	2.9	7.5
YVF2-90L-4	1.5	3.7	10
YVF2-100L1-4	2.2	5.2	14.9
YVF2-100L2-4	3	6.8	20
YVF2-112M-4	4	8.8	26.5
YVF2-132S-4	5.5	11.8	36.5
YVF2-132M-4	7.5	15.6	50
YVF2-160M-4	11	22.3	72
YVF2-160L-4	15	30.1	98
YVF2-180M-4	18.5	36.1	120
YVF2-180L-4	22	42.7	143
YVF2-200L-4	30	57.6	195
YVF2-225S-4	37	69.9	240	3~50
YVF2-225M-4	45	84.7	291
YVF2-250M-4	55	103	355
YVF2-280S-4	75	140	484
YVF2-280M-4	90	167	580
YVF2-315S-4	110	201	710
YVF2-315M-4	132	240	852
YVF2-315L1-4	160	288	1032
YVF2-315L2-4	200	359	1290

Component parameters related to variable frequency motors

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315
Cooling fan	power	60 (10)*	60 (25)*	60 (25)*	60 (25)*	40	40	230	230	230	230	370	500
	Voltage	Single phase 220V or three phase 220V, 380V 1-PH220V or 3-PH220V, 380V								Three-phase 380V 3-PH380V
Brake	Brake torque	7.5	15	30	40	75	150	200	300	450	-	-	-
	Excitation power	50	60	80	110	130	150	150	200	200	-	-	-
	Excitation voltage	DC24V、AC220V、AC380V									-	-	-
Photoelectric encoder	Incremental encoders

Installation structure type

Common installation structure type, and the applicable frame size is shown in the table below

Frame number

Basic installation structure

Derived installation type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

80~160

√

√

√

√

√

√

√

√

√

√

√

√

180~280

√

√

√

√

－

－

－

－

－

－

－

－

315

√

－

√

√

－

－

－

－

－

－

－

－

Note: "√" indicates the type of structure that can be manufactured

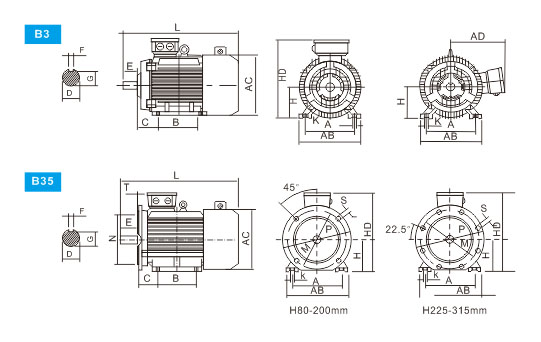

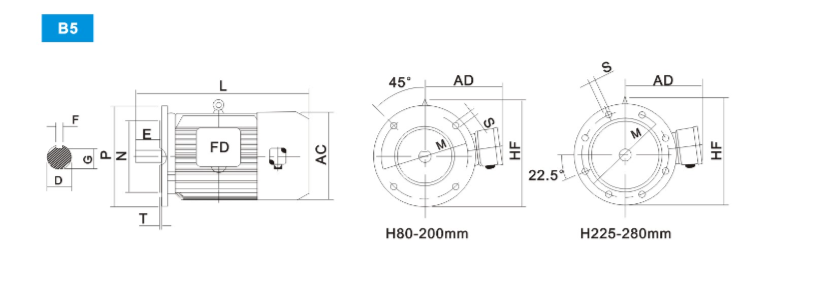

Overall Installation Dimensions

Frame	Installation dimension												Dimension
	C	D	E	F	G	H	M	N	P	R	S	T	AC	AD	HF	L
80M	50	19	40	6	15.5	80	165	130	200	0	12	3.5	175	145	185	370
90S	56	24	50	8	20	90	165	130	200	0	12	3.5	195	155	195	380
90L	56	24	50	8	20	90	165	130	200	0	12	3.5	195	155	195	410
100L	63	28	60	8	24	100	215	180	250	0	15	4	215	180	245	465
112M	70	28	60	8	24	112	215	180	250	0	15	4	240	190	265	480
132S	89	38	80	10	33	132	265	230	300	0	15	4	275	210	315	530
132M	89	38	80	10	33	132	265	230	300	0	15	4	275	210	315	570
160M	108	42	110	12	37	160	300	250	350	0	19	5	330	255	385	660
160L	108	42	110	12	37	160	300	250	350	0	19	5	330	255	385	715
180M	121	48	110	14	42.5	180	300	250	350	0	19	5	380	280	430	775
180L	121	48	110	14	42.5	180	300	250	350	0	19	5	380	280	430	815
200L	133	55	110	16	49	200	350	300	400	0	19	5	420	305	480	850
225S	149	60	140	18	53	225	400	350	450	0	19	5	470	335	535	885
225M	149	60	140	18	53	225	400	350	450	0	19	5	470	335	535	915
250M	168	65	140	18	58	250	500	450	550	0	19	5	510	370	595	980
280S	190	75	140	20	67.5	280	500	450	550	0	19	5	580	410	650	1085
280M	190	75	140	20	67.5	280	500	450	550	0	19	5	580	410	650	1135

Frame number	Installation dimensions															Dimensions
Frame number	A	B	C	D	E	E	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	370
90S	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	380
90L	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	410
100L	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	465
112M	190	140	70	28	60	8	24	112	215	230	250	0	15	4	12	230	240	190	300	480
132S	216	140	89	38	80	10	33	132	365	230	300	0	15	4	12	270	275	210	345	530
132M	216	178	89	38	80	10	33	132	365	250	300	0	15	4	12	270	275	210	345	570
160M	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	660
160L	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	4720	715
180M	279	241	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	280	280	455	775
180L	279	279	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	280	280	455	815
200L	318	305	133	55	110	16	49	200	350	300	400	0	19	5	19	395	420	305	505	850
225S	356	286	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	885
225M	356	311	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	915
250M	406	349	168	65	140	18	58	250	500	450	550	0	19	5	21	490	510	370	615	980
280S	457	368	190	75	140	20	67.5	280	500	450	550	0	19	5	21	550	580	410	680	1085
280M	457	419	190	75	140	20	67.5	280	500	450	550	0	19	5	21	550	580	410	680	1135
315S	508	406	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1285
315M	508	457	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1395
315L	508	508	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1395
